Author: Takazudo | Published: 2026/04/30

This is the product details page for zudo-3u-to-1u, a Takazudo Modular accessory.

This is a converter panel set that lets you install 3U modules into an Intellijel-format 1U slot in a Eurorack modular synthesizer case. It's a simple converter panel for those who have a 1U slot but no 1U modules — letting you fill that empty 1U row with regular 3U modules instead.

Product Photos

zudo-3u-to-1u front view

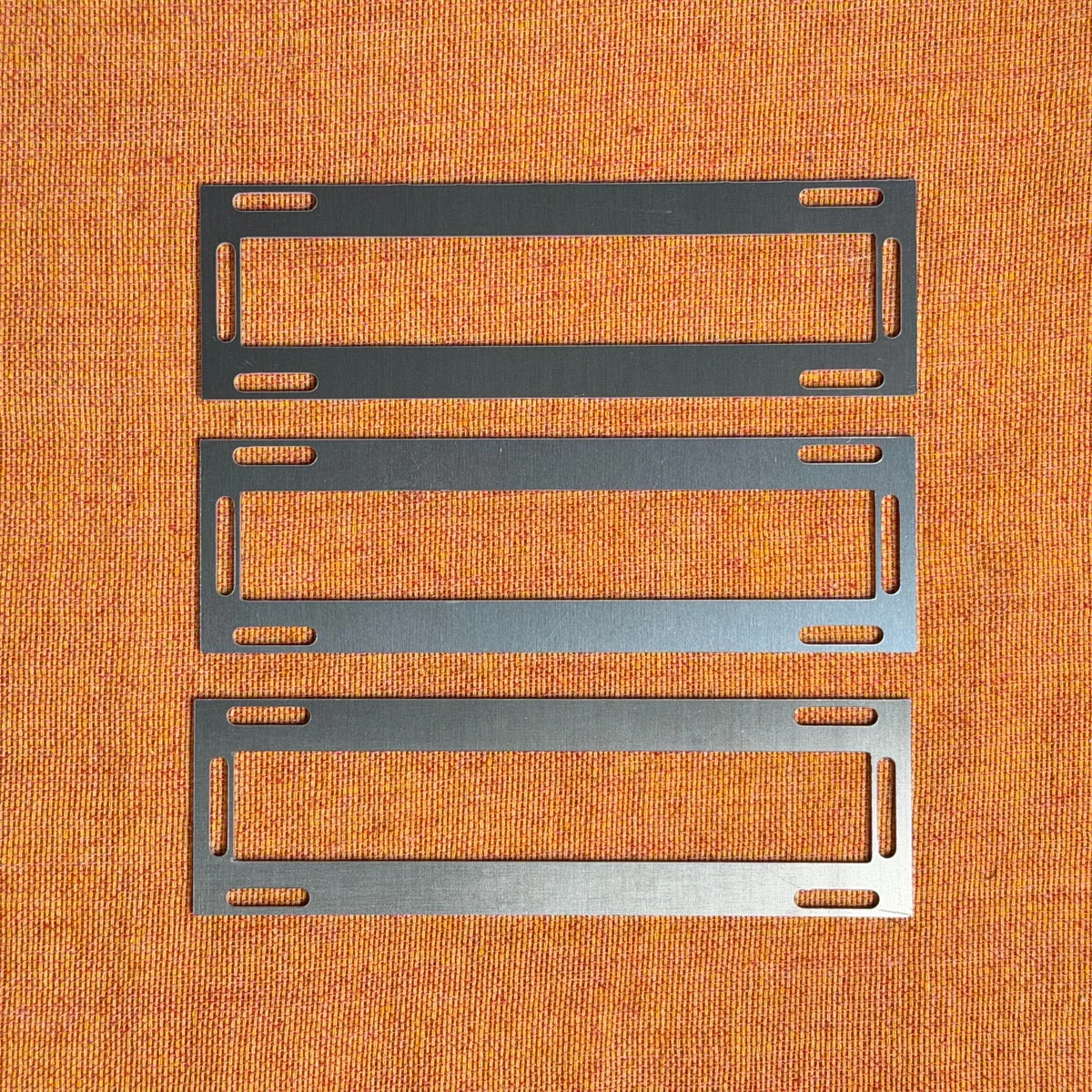

zudo-3u-to-1u alternate angle

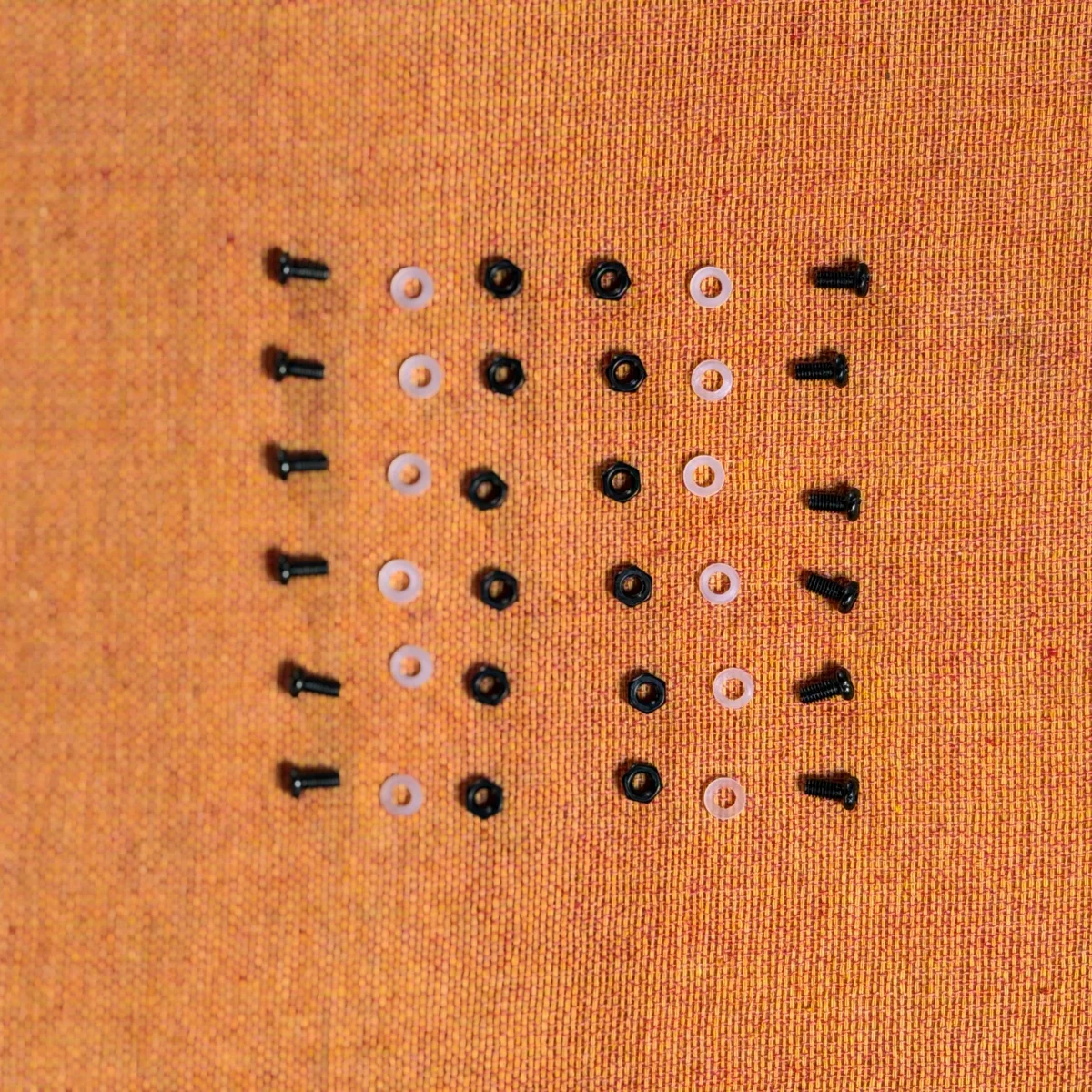

zudo-3u-to-1u included hardware set (screws / washers / nuts)

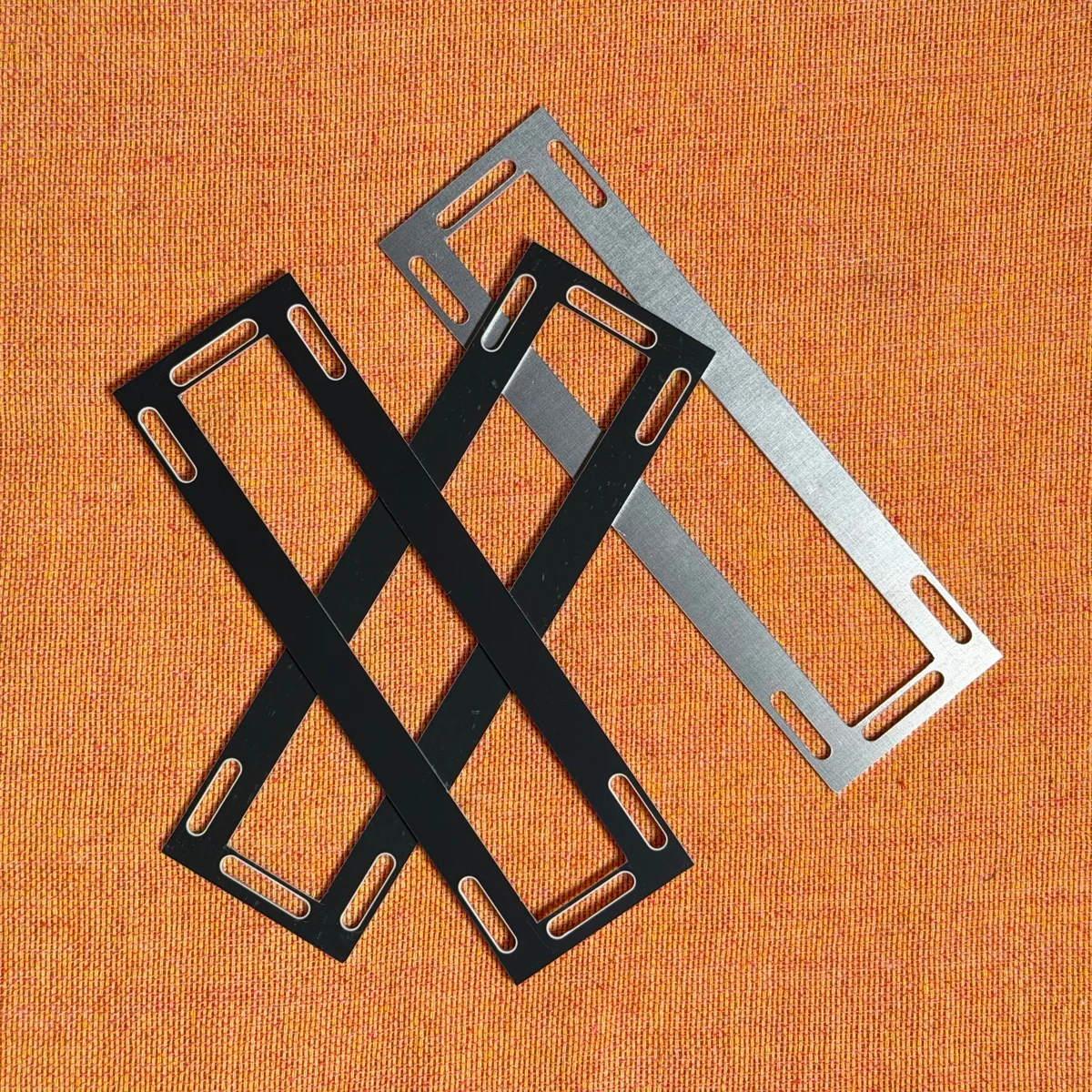

zudo-3u-to-1u panels assembled in a cross configuration (black and silver)

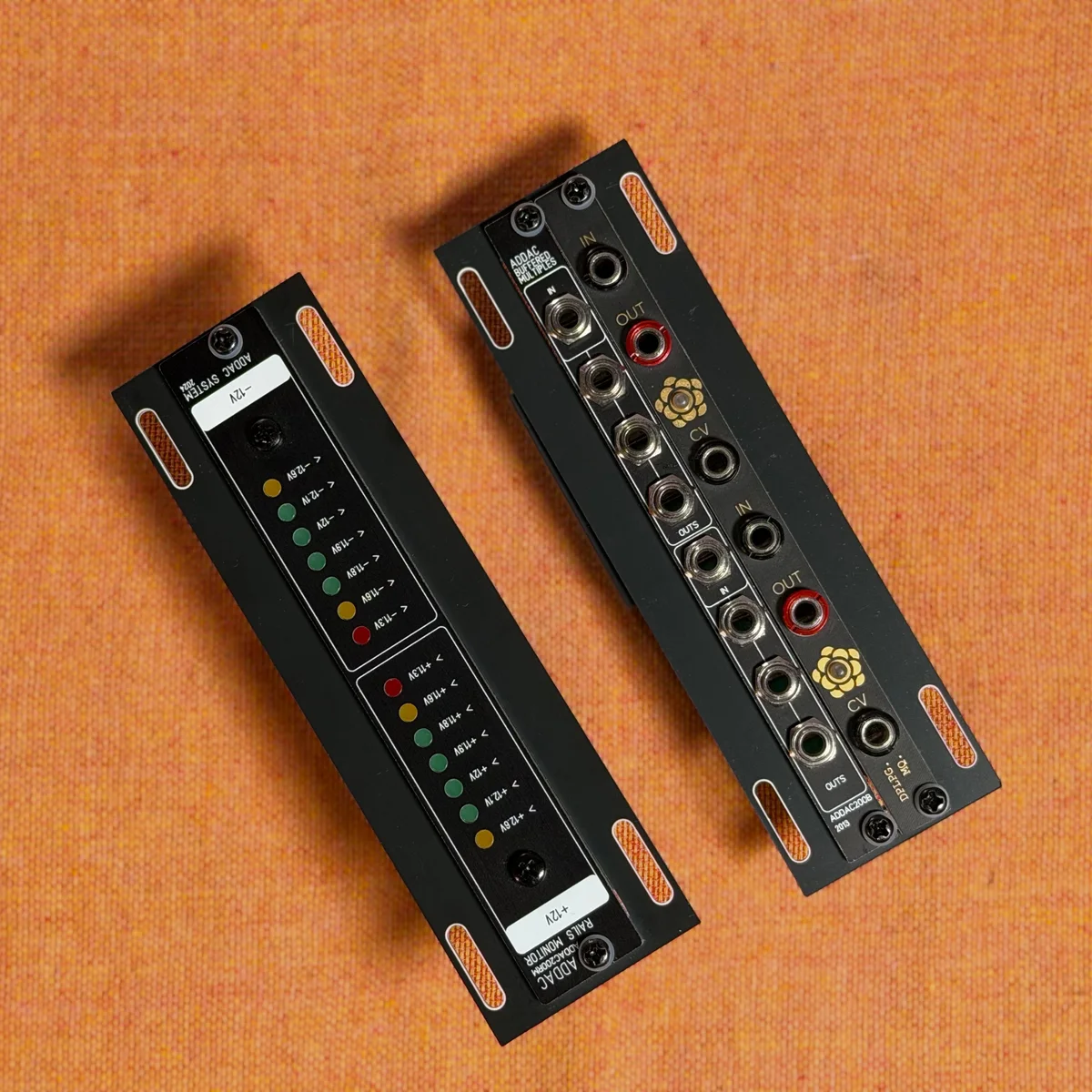

zudo-3u-to-1u example of installable 3U modules (ADDAC System)

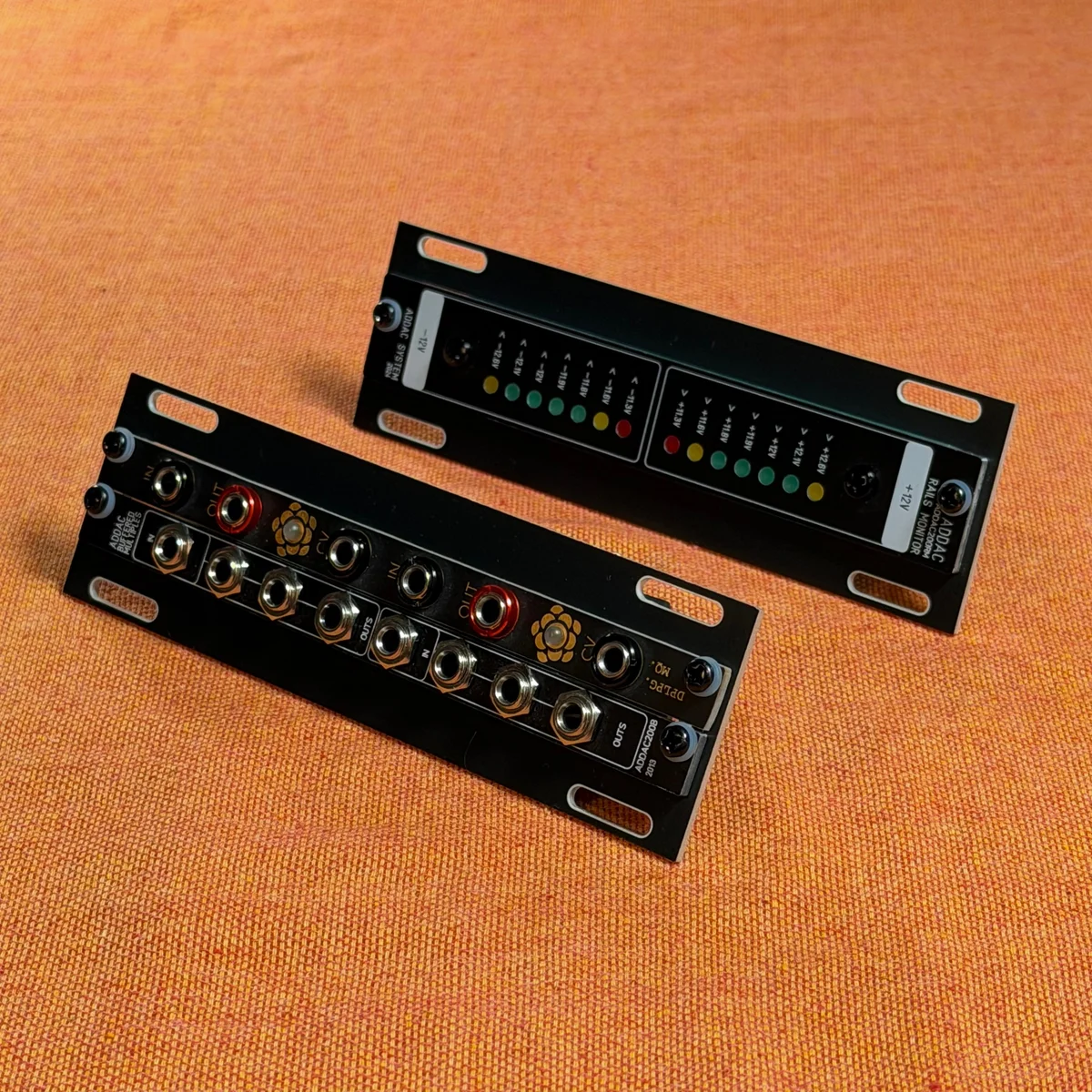

zudo-3u-to-1u example of installable 3U modules (alternate angle)

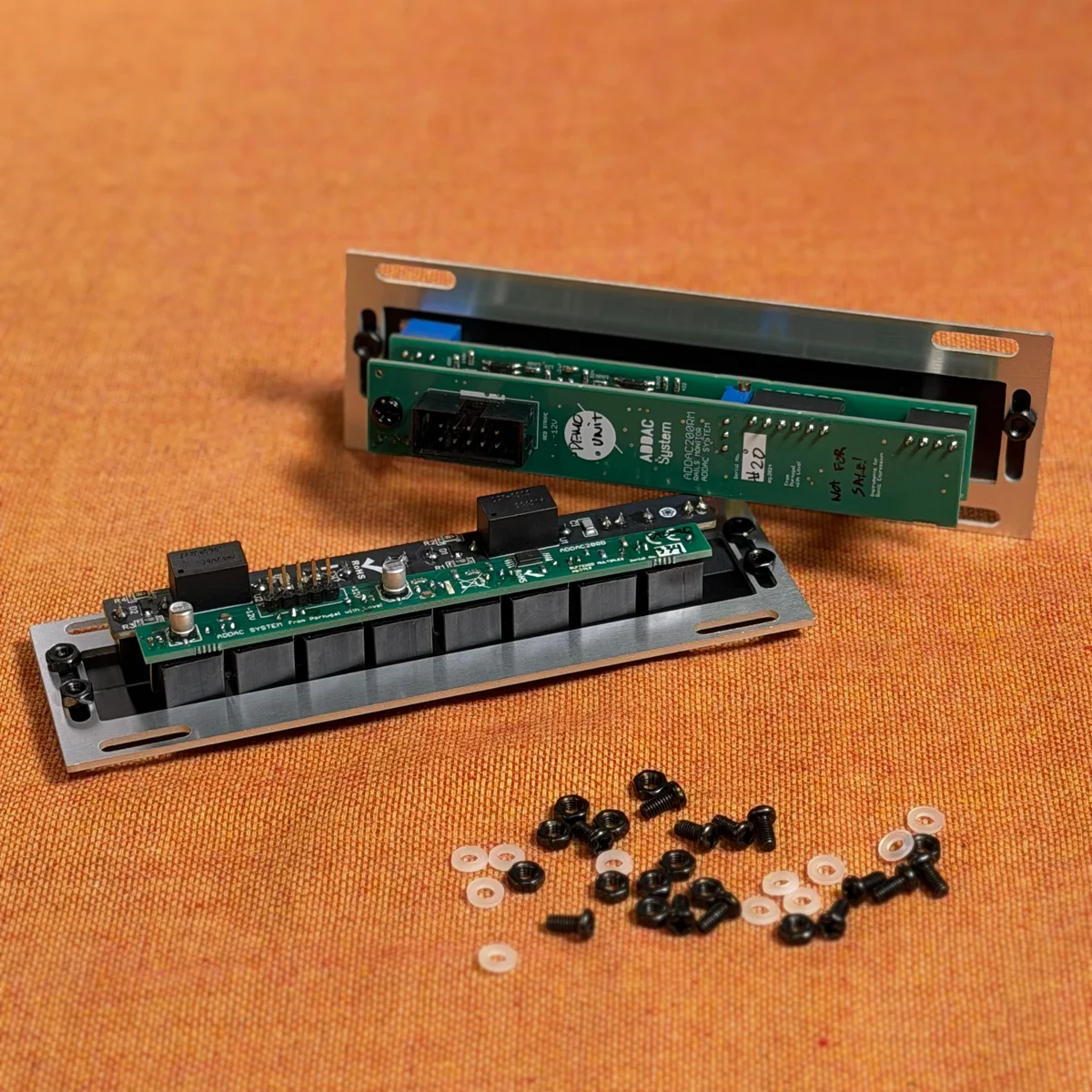

zudo-3u-to-1u disassembled module parts for reference

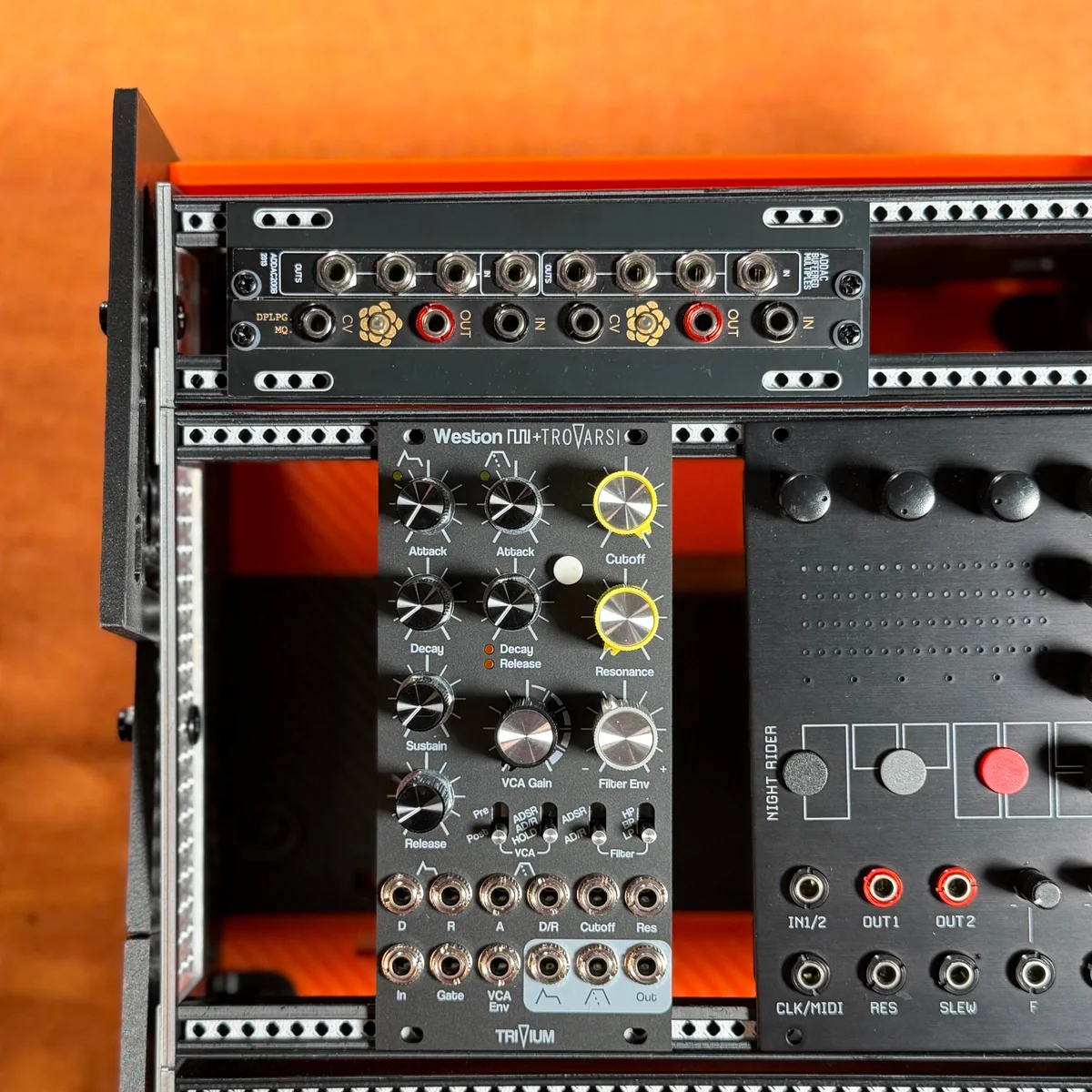

zudo-3u-to-1u installed in a case (usage example)

zudo-3u-to-1u Features

This is a converter panel set that adapts an Intellijel-format 1U slot to accept regular 3U modules (up to 4HP wide). By fixing these panels to your 1U rails, the panels expose mounting holes for 3U modules — letting you install 3U modules in that 1U row.

Module sizes that fit:

  • 1× 4HP module

  • 1× 3HP module

  • 2× 2HP modules

Useful when your case has 1U rows but you don't own (or don't want to buy) dedicated 1U modules — you can fill that empty 1U space with the 3U modules you already use.

Set Contents

The contents of this product are as follows:

  • Panels x 3

  • M3 screws x 12

  • M3 plastic washers x 12

  • M3 nuts x 12

3D preview

Rotate the model to see the converter panel's opening and mounting holes. Switch between the set of three identical panels and a single panel. The included screws, washers and nuts are not shown. The viewer's labels are in Japanese.

3D model of the three zudo-3u-to-1u panels

zudo-3u-to-1u

See the three identical converter panels in 3D. The included hardware is not shown.

Drag to rotate, scroll to zoom

Parts and dimensions

Switch between the whole set and a single panel to check the outline and opening dimensions. You can also compare it with the blank panels at the same scale. Dimensions are design values, and the on-screen size is not true scale. The viewer's labels are in Japanese.

Installation

Install your 3U modules into the long horizontal slots on the panel. The panel itself does not have tapped holes (threaded grooves to hold a screw), so use the included screws and nuts: pass each screw through the panel and secure it with a nut on the back side.

About the 1U Format

Several 1U format standards exist within Eurorack modular. This product supports the Intellijel-format 1U (39.65mm height).

  • ✅ Intellijel 1U (39.65mm): Supported

  • ❌ Pulplogic / Doepfer 1U (43.2mm): Not supported

Most users with 1U rows in Japan use the Intellijel format, but to avoid return issues after purchase, please double-check your format before buying.

About the Development of This Product

I actually started making this product more than a year before release — but I got the dimensions wrong and ended up producing a large batch that had to be set aside in disappointment. After finally fixing the dimensions, the development experience along the way evolved the design into something with more flexible module-mounting holes (though only I would notice that part).

This converter panel was made using the same know-how I use for my blank panels. I hope it helps you make good use of the 1U rows that often end up empty.

That concludes our introduction of the zudo-3u-to-1u.

We hope you find this helpful.
